If File system is full or ASM file System is full and not able to add the space on the tablespace, you can reclaim the unused data file space from the file system.
Step 1. Login to the database server and login as sysdba
sqlplus sys as sysdba
if it is PDB database, connect to PDB database using alter session set container=PDB_DB_NAME
Step 2: Execute the below query, it will give the output of SQL query to resize the data file to reclaim the storage.
set linesize 1000 pagesize 0 feedback off trimspool on
with
hwm as (
-- get highest block id from each datafiles ( from x$ktfbue as we don't need all joins from dba_extents )
select /*+ materialize */ ktfbuesegtsn ts#,ktfbuefno relative_fno,max(ktfbuebno+ktfbueblks-1) hwm_blocks
from sys.x$ktfbue group by ktfbuefno,ktfbuesegtsn
),
hwmts as (
-- join ts# with tablespace_name
select name tablespace_name,relative_fno,hwm_blocks
from hwm join v$tablespace using(ts#)
),
hwmdf as (
-- join with datafiles, put 5M minimum for datafiles with no extents
select file_name,nvl(hwm_blocks*(bytes/blocks),5*1024*1024) hwm_bytes,bytes,autoextensible,maxbytes
from hwmts right join dba_data_files using(tablespace_name,relative_fno)
)
select
case when autoextensible='YES' and maxbytes>=bytes
then -- we generate resize statements only if autoextensible can grow back to current size
'/* reclaim '||to_char(ceil((bytes-hwm_bytes)/1024/1024),999999)
||'M from '||to_char(ceil(bytes/1024/1024),999999)||'M */ '
||'alter database datafile '''||file_name||''' resize '||ceil(hwm_bytes/1024/1024)||'M;'
else -- generate only a comment when autoextensible is off
'/* reclaim '||to_char(ceil((bytes-hwm_bytes)/1024/1024),999999)
||'M from '||to_char(ceil(bytes/1024/1024),999999)
||'M after setting autoextensible maxsize higher than current size for file '
|| file_name||' */'
end SQL
from hwmdf
where
bytes-hwm_bytes>1024*1024 -- resize only if at least 1MB can be reclaimed
order by bytes-hwm_bytes desc
with
hwm as (
-- get highest block id from each datafiles ( from x$ktfbue as we don't need all joins from dba_extents )
select /*+ materialize */ ktfbuesegtsn ts#,ktfbuefno relative_fno,max(ktfbuebno+ktfbueblks-1) hwm_blocks
from sys.x$ktfbue group by ktfbuefno,ktfbuesegtsn
),
hwmts as (
-- join ts# with tablespace_name
select name tablespace_name,relative_fno,hwm_blocks
from hwm join v$tablespace using(ts#)
),
hwmdf as (
-- join with datafiles, put 5M minimum for datafiles with no extents
select file_name,nvl(hwm_blocks*(bytes/blocks),5*1024*1024) hwm_bytes,bytes,autoextensible,maxbytes
from hwmts right join dba_data_files using(tablespace_name,relative_fno)
)
select
case when autoextensible='YES' and maxbytes>=bytes
then -- we generate resize statements only if autoextensible can grow back to current size
'/* reclaim '||to_char(ceil((bytes-hwm_bytes)/1024/1024),999999)
||'M from '||to_char(ceil(bytes/1024/1024),999999)||'M */ '
||'alter database datafile '''||file_name||''' resize '||ceil(hwm_bytes/1024/1024)||'M;'
else -- generate only a comment when autoextensible is off
'/* reclaim '||to_char(ceil((bytes-hwm_bytes)/1024/1024),999999)
||'M from '||to_char(ceil(bytes/1024/1024),999999)
||'M after setting autoextensible maxsize higher than current size for file '
|| file_name||' */'
end SQL
from hwmdf
where
bytes-hwm_bytes>1024*1024 -- resize only if at least 1MB can be reclaimed
order by bytes-hwm_bytes desc
/

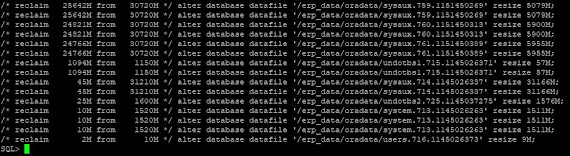

Step 3: Execute the above query output to resize the data file to reclaim the storage
